Zfx Inhouse 5x - Control manual

Turn on

To run the Inhouse 5x, it's necessary that following conditions are compiled:
Power; 200-240 V AC +/- 10% (or 100-120 V AC)
Compressed Air; Constant 6bar, dry, minimum 250 L/min
Functioning network

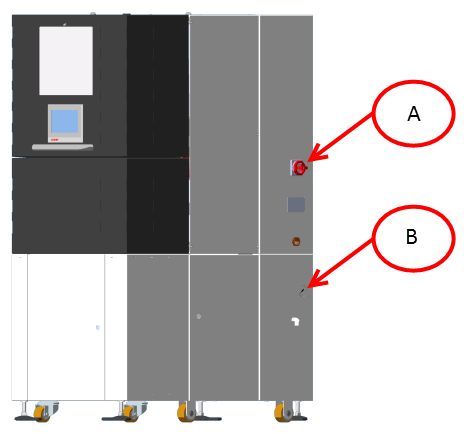

Switch On

A) Main switch
For switching on/off

B) Manometer
Shows the input of pressure.
If it indicates less than a 6bar, it shows an error warning on the display.
It's NOT possible to run the machine with less than a 6bar.

After the main switch turned on, it takes a few seconds till the computer has booted.
After the booting start screen is displayed.

The first step is to enter the Login.
Therefore Click on User login!
